In modern manufacturing, with an ever-increasing change, precision and efficiency are of utmost importance. Among other techniques of producing good-quality metal parts, the investment casting process is unique in that it can deliver complex, high-precision and good surface finish components. This casting is worth knowing about for engineers and manufacturers; even anybody simply curious about advanced manufacturing methods will gain insight into one of the most sophisticated techniques in metal casting.
What is the Investment Casting Process?
The investment casting process or the lost-wax process is a technique that involves creating a wax copy of the component, coating it with a ceramic shell layer, and burning to leave a hollow space for molten metal casting.
This technique was traced back 5,500 years to China and Egypt and remains one of the most flexible casting processes that are used in aerospace, defense, automobile and medical devices today.

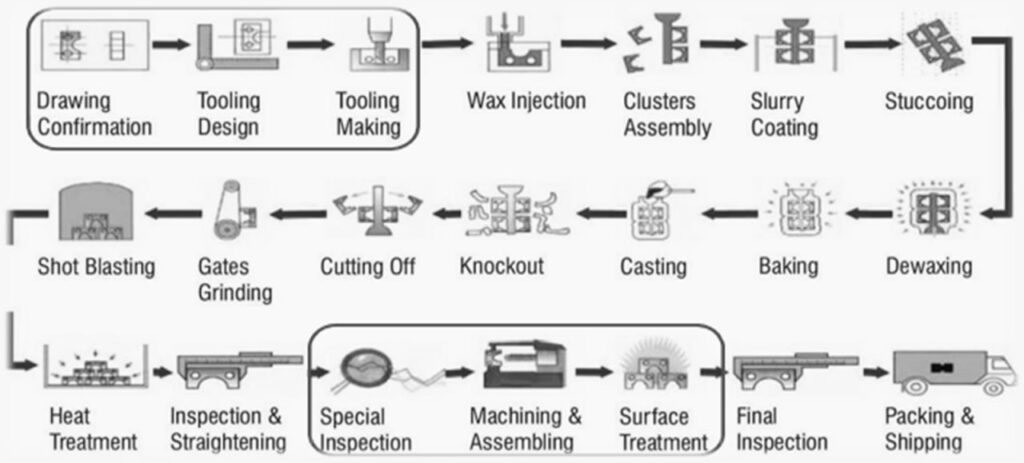

Step-by-Step Process
1. Engineering Review
The procedure starts with an extensive engineering analysis. In this phase, manufacturers such as Adithya Tech Force collaborate with customers to finalize the design for casting. This involves tolerance measurements, size, gate locations and post-casting specifications. The goal is to have the design prepared for the investment casting process while improving performance and manufacturability to the maximum extent.
2. Mold Design and Build
After the design approval, preparation of the master mould takes place in which the wax patterns are cast. The high integrity molds will produce thousands of accurate wax replicas. Adithya Tech Force uses leading-edge CAD software and on-site tooling facilities so that accuracy and reliability are ensured.
3. Wax Pattern Creation
Wax patterns are usually produced and assembled using the molds where they can be onto a wax “tree” or cluster. This cluster represents multiple parts to be cast simultaneously, optimizing productivity and material usage.
4. Ceramic Shell Construction
The wax tree is dipped again in ceramic slurry and covered with fine sand. This layering process in the investment casting foundry India typically occurs six to eight times, with drying intervals in between, to build a strong ceramic shell capable of withstanding molten metal. The ceramic is then fully dried and cured.
5. De-waxing
The wax tree is treated with a ceramic coating, which is then autoclaved, with steam and high pressure dissolving and stripping the wax leaving a clean, hollow ceramic mold ready for casting.
6. Metal Pouring
The mold is pre-heated in a furnace to cure the ceramic and remove any residual moisture. Eventually, this molten or liquid metallic material is poured into the closed cavity.
7. Shell Removal and Part Separation
The ceramic shell is carefully broken employing blasting, water jets or vibration. The components are then separated from the gating system and ready for finishing.
8. Finishing
Final processes in investment casting foundry India may include grinding, machining, heat treatment or coating to enhance properties like hardness, corrosion resistance or surface appearance. At Adithya Tech Force, quality checks and precision inspections ensure every part meets rigorous industry standards.
Advantages of the Investment Casting Process
There are tremendous advantages from the process of investment casting and for this reason it is very favorable for many uses.
- Accuracy and Precision: Parts produced by the investment casting method are net or near net shapes with extremely precise tolerances.
- Superb Finish: Minimize or eliminate need for secondary machine work.
- Versatile Material: Investment casting works well with nearly all ferrous and nonferrous alloys.
- Complex Geometries: Suited for intricate design features such as internal channels and small details.
- Reduction in Assembly: Casting integrates various parts into one, thus cutting on downstream operations.
- Efficient Use of Resources: Least wastage of material, thus being eco-friendly.
Limitations of the Investment Casting Process
Despite having a highly effective process in investment casting, it has some limitations:
- Costly in Initial Stage- Investment in tooling and molds is usually not economical for low-volume production runs.
- Size Constraint: Larger parts may not be possible because of mold limitation.
- Longer lead times, as multiple steps are involved in the process, increasing total production time.
- Process Sensitive: Needs stringent quality checks to maintain consistency to eliminate defects.
Applications of Investment Casting
The flexibility of the investment casting process enables it to serve a wide spectrum of industries. Typical uses include:
- Aerospace Components: Turbine blades, cooling system components.
- Automotive Industry: Transmission and engine parts, gears, brake components.
- Medical Devices: Surgical tools, orthopedic implants.
- Industrial Equipment: Pumps, valves, brackets.
- Consumer Products: Jewelry, art and decorative items.
When to Choose the Process of Investment Casting
Based on cost, accuracy and quantity of production, the following are optimal conditions for selecting the process in investment casting:
- Small-sized particles that have a maximum volume of 1000 kg.
- Parts require hard-to-machine or hard-to-cast structures by other methods.
- High-production volumes where cost for tooling can be accommodated.
- Conditions needing high-surface finish with low tolerances.
- Structures which can get an advantage out of integrating many pieces into a single part.
Conclusion
To conclude, the investment casting process has survived over the years by adapting itself with time to modern industrial requirements. It is capable of producing precise metal parts and complex shapes, with excellent finish and dimensional accuracies and makes it an indispensable process in most industries.
To such companies that seek a trusted partner in this field, Adithya Tech Force has provided unmatched expertise and capability as premier investment casting foundry India. If you are looking for ways to improve your existing manufacturing process or simply want to broaden your options, investment casting could deliver a real change in your product development strategy.
